Deployments with GitHub

GitHub is a web-based platform that facilitates version control and collaborative software development using Git. It enables developers to host, review code, manage projects, and work together on software development. GitHub offers tools for issue tracking, project management, and documentation, enhancing team collaboration. It hosts millions of open-source projects from developers across the world.

How does the integration work?

Appwrite supports a Git integration to enable the generation of repositories for function templates and manage automatic deployments for any Appwrite Functions through GitHub.

Note: For the automatic Git deployment to work, Appwrite needs to receive communication from GitHub, this means your Appwrite project must be accessible on the internet. If you're running on localhost, you need to run a proxy like ngrok.

How to implement

To implement the GitHub integration for Appwrite Functions, there are several steps you must complete:

Step 1: Create a GitHub App

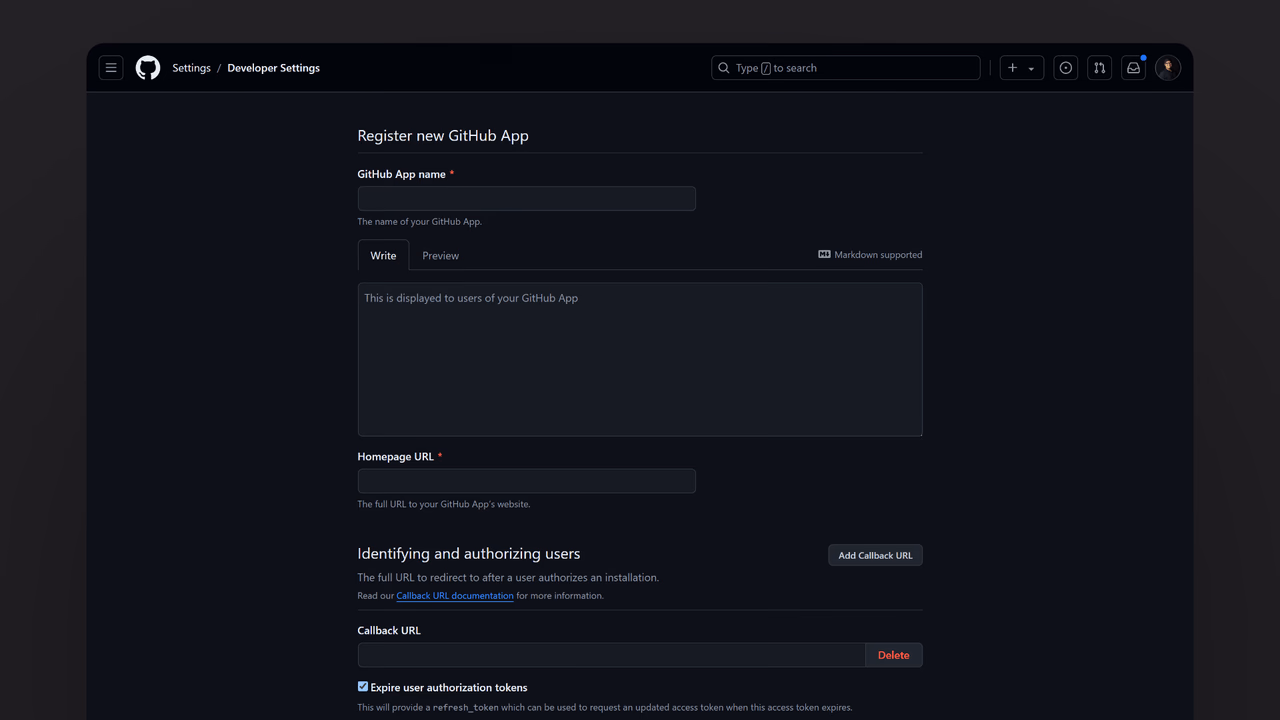

Visit the Developer Settings on GitHub to create a new GitHub app.

Add a GitHub name (keep in mind that this will be publicly displayed), a relevant description, and a homepage URL for your application. Then, add the following URLs:

Type of URL	URL
Callback URL	https://[HOSTNAME_OR_IP]/v1/vcs/github/callback
Callback URL	https://[HOSTNAME_OR_IP]/v1/account/sessions/oauth2/callback/github/console
Webhook URL	https://[HOSTNAME_OR_IP]/v1/vcs/github/events

Under the Callback URLs section, check the Request user authentication (OAuth) during installation box. After that, request the following permissions:

Permission	Access
Administration	Read and write
Checks	Read and write
Commit Statuses	Read and write
Contents	Read and write
Issues	Read and write
Metadata	Read-only
Pull Requests	Read and write
Webhooks	Read and write

Permission	Access
Email address	Read-only

Under the Subscribe to events section, check the Pull request and Push boxes. Lastly, allow Any account to install the GitHub app.

Once the app is created, create a new client secret and private key, and configure a webhook secret.

Step 2: Add GitHub provider to the Appwrite instance

For this step, you must self-host Appwrite if you haven’t already.

Visit the .env file created for your Appwrite instance and update the following environment variables:

Variable	Description
_APP_DOMAIN	Your main Appwrite domain used to access the Appwrite Console. When setting a public suffix domain, Appwrite will attempt to issue a valid SSL certificate automatically. When used with a dev domain, Appwrite will assign a self-signed SSL certificate. If you're using a proxy for localhost development, such as ngrok, this will be the domain of your localhost proxy.
_APP_DOMAIN_TARGET	A hostname to serve as a CNAME target for your Appwrite custom domains. You can use the same value as used for the Appwrite _APP_DOMAIN variable. If you're using a proxy for localhost development, such as ngrok, this will be the domain of your localhost proxy, such as dd65-2405-201-4013-d8d7-b4c5-fb73-39f9-285c.ngrok.io.
_APP_DOMAIN_FUNCTIONS	This will be used for system-generated function domains. When a function domain is generated, it will be [UNIQUE_ID].[_APP_DOMAIN_FUNCTIONS]. If _APP_DOMAIN_FUNCTIONS is set to example.com for example, the generated domain for functions will be something like 64d4d22db370ae41a32e.example.com. You can use the same value as used for the Appwrite _APP_DOMAIN variable.
_APP_VCS_GITHUB_APP_NAME	Name of your GitHub app. This is visible as the slug in your GitHub app's public link. For example, if the public link of your GitHub app is https://github.com/apps/test-appwrite-integration, then the app name will be test-appwrite-integration.
_APP_VCS_GITHUB_PRIVATE_KEY	RSA private key from GitHub wrapped with double quotes and newlines replaced with \n.
_APP_VCS_GITHUB_APP_ID	GitHub application ID from your GitHub app.
_APP_VCS_GITHUB_CLIENT_ID	GitHub client ID from your GitHub app.
_APP_VCS_GITHUB_CLIENT_SECRET	GitHub client secret from your GitHub app.
_APP_VCS_GITHUB_WEBHOOK_SECRET	GitHub webhook secret from your GitHub app.

This is how the fields would look like in the .env file:

Bash

_APP_DOMAIN=appwrite.example.com
_APP_DOMAIN_TARGET=appwrite.example.com
_APP_DOMAIN_FUNCTIONS=functions.example.com
_APP_VCS_GITHUB_APP_NAME=my-github-app
_APP_VCS_GITHUB_PRIVATE_KEY="-----BEGIN RSA PRIVATE KEY-----\nMIIEogIBAAKCAQEAuT8f3lo/X83hfvb0ZN/KD2pl86o/jl3ywKrkj/PQZBmtEv/z\nIugE//sfFoHWc4cizkcji+n3FNU+GEdvMioKuJlPBqPTY8hAbVn7R0geZLpDV/rs\n[...]\n-----END RSA PRIVATE KEY-----"
_APP_VCS_GITHUB_APP_ID=12415
_APP_VCS_GITHUB_CLIENT_ID=Iv1.35asdf43asd
_APP_VCS_GITHUB_CLIENT_SECRET=35rsdse532q13
_APP_VCS_GITHUB_WEBHOOK_SECRET=super-secret

After that, run the following Docker Compose commands in your terminal to restart your Appwrite containers and verify if the changes have been successfully applied:

Bash

docker compose up -d --force-recreate
docker compose exec appwrite vars

Step 3: Test the provider

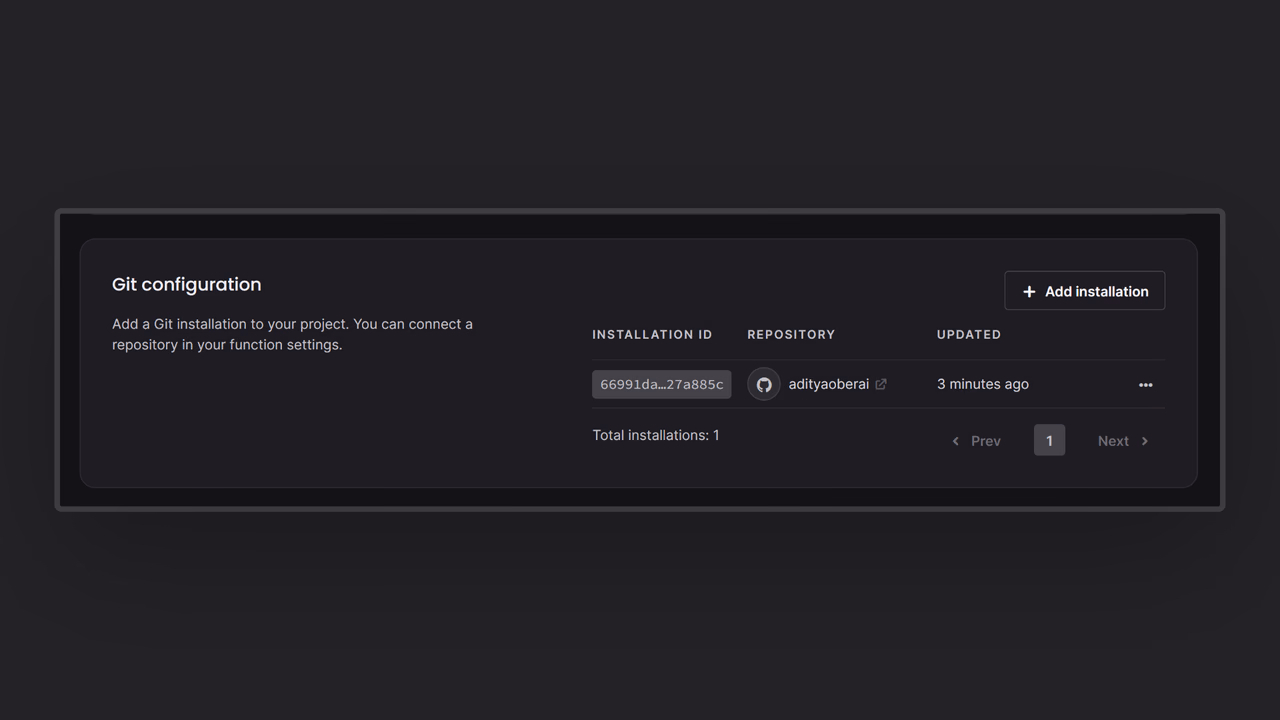

To test the provider, go to the Settings page in your Appwrite project, navigate to the Git configuration section, and add an installation. On successful installation, you should be able to find your app installation in the same section.
